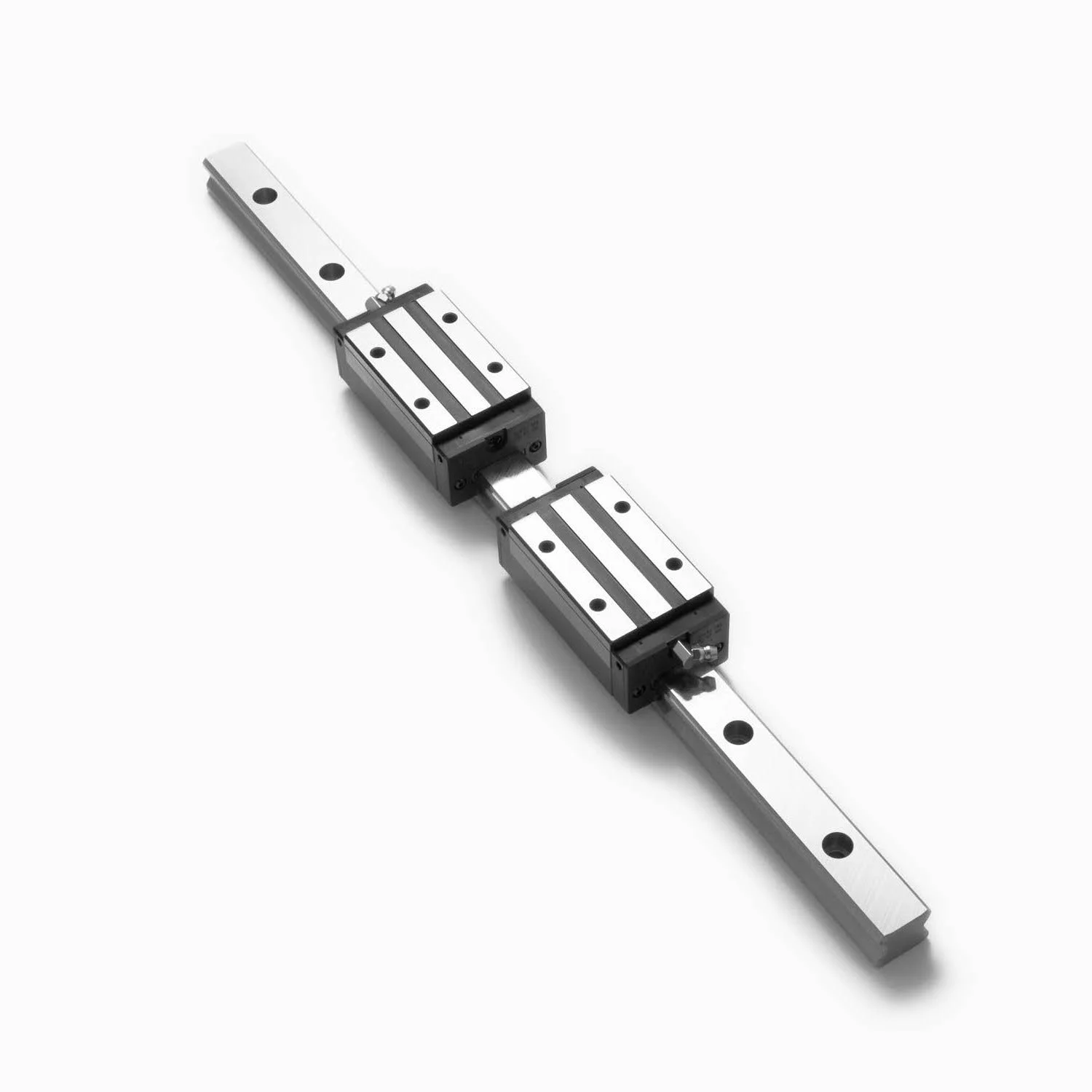

Heavy Load Slim Type

SBI-SLS/SL/SLL

Model Download Mounting dimension Block dimensions Rail dimension Basic load
rating (kN)		 Permissible static
moment (kN•m)		 Mass
H W L E Mounting tap hole L1 T±1 K Grease fitting W1 W2 H1 F Bolt hole G Max length
of rail LO
B J M DP T1 N1 T2 N2 Q1 *Q2 d D h C Co Mro Mpo Myo Block (kg) Rail (kg/m)
SBI15 SLS FILE 28 34 56.8 3 26 26 M4 5 38.2 10 25 8.5 5.5 7.8 3.8 M4x0.7 ø3.5 15 9.5 13 60 4.5 7.5 5.5 20 3000 12.3 18.3 0.13 0.08 0.08 0.19 1.3
SBI15 SL FILE 28 34 63.8 3 26 26 M4 5 45.2 10 25 8.5 5.5 7.8 3.8 M4x0.7 ø3.5 15 9.5 13 60 4.5 7.5 5.5 20 3000 14.1 24.1 0.16 0.17 0.17 0.23 1.3
SBI15 SLL FILE 28 34 79.4 3 26 34 M4 5 60.8 10 25 8.5 5.5 7.8 3.8 M4x0.7 ø3.5 15 9.5 13 60 4.5 7.5 5.5 20 3000 17.1 31.7 0.21 0.29 0.29 0.31 1.3
SBI20 SLS FILE 30 44 73.8 4.6 32 36 M5 5 51.8 10 25.4 6 12 5.8 5 M6x0.75 ø3.5 20 12 16.5 60 6 9.5 8.5 20 4000 20.2 29.1 0.29 0.18 0.18 0.33 2.2
SBI20 SL FILE 30 44 78.8 4.6 32 36 M5 5 56.8 10 25.4 6 12 5.8 5 M6x0.75 ø3.5 20 12 16.5 60 6 9.5 8.5 20 4000 22.2 38.2 0.36 0.33 0.33 0.36 2.2
SBI20 SLL FILE 30 44 96.4 4.6 32 50 M5 5 74.4 10 25.4 6 12 5.8 5 M6x0.75 ø3.5 20 12 16.5 60 6 9.5 8.5 20 4000 27.9 50 0.47 0.56 0.56 0.47 2.2
SBI25 SLS FILE 40 48 83 5.5 35 35 M6 8 61 16 34.5 10 12 9 5 M6x0.75 ø3.5 23 12.5 20 60 7 11 9 20 4000 28.9 42.8 0.49 0.32 0.32 0.58 3
SBI25 SL FILE 40 48 92 5.5 35 35 M6 8 70 16 34.5 10 12 9 5 M6x0.75 ø3.5 23 12.5 20 60 7 11 9 20 4000 31.5 52.1 0.56 0.56 0.56 0.68 3
SBI25 SLL FILE 40 48 108 5.5 35 50 M6 8 86 16 34.5 10 12 9 5 M6x0.75 ø3.5 23 12.5 20 60 7 11 9 20 4000 36.7 64.4 0.69 0.84 0.84 0.82 3
SBI30 SLS FILE 45 60 96.8 7 40 40 M8 10 68.8 12 38 11.5 12 10.8 5 M6x0.75 ø5.7 28 16 23 80 9 14 12 20 4000 39.2 57.7 0.8 0.49 0.49 0.92 4.25
SBI30 SL FILE 45 60 107.6 7 40 40 M8 10 79.6 12 38 11.5 12 10.8 5 M6x0.75 ø5.7 28 16 23 80 9 14 12 20 4000 42.8 65.4 0.85 0.77 0.77 1.06 4.25
SBI30 SLL FILE 45 60 131.6 7 40 60 M8 10 103.6 12 38 11.5 12 10.8 5 M6x0.75 ø5.7 28 16 23 80 9 14 12 20 4000 51.3 84.7 1.1 1.3 1.3 1.36 4.25
SBI35 SLS FILE 55 70 108.2 8 50 50 M8 10 78.2 15 47.5 15 12 15 6 M6x0.75 ø5.7 34 18 26 80 9 14 12 20 4000 52 73.3 1.24 0.71 0.71 1.48 6.02
SBI35 SL FILE 55 70 124.6 7.5 50 50 M8 10 94.6 15 47.5 15 12 15 6 M6x0.75 ø5.7 34 18 26 80 9 14 12 20 4000 59.5 89.1 1.42 1.28 1.28 1.82 6.02
SBI35 SLL FILE 55 70 152.6 7.5 50 72 M8 10 122.6 15 47.5 15 12 15 6 M6x0.75 ø5.7 34 18 26 80 9 14 12 20 4000 71.3 115.3 1.83 2.12 2.12 2.32 6.02
SBI45 SL FILE 70 86 142 9 60 60 M10 13 108 17 61 20.5 13.5 19.3 6.5 PT1/8 ø5.7 45 20.5 32 105 14 20 17 22.5 4000 79.2 116.3 2.48 1.9 1.9 3.08 9.77
SBI45 SLL FILE 70 86 174 9 60 80 M10 13 140 17 61 20.5 13.5 19.3 6.5 PT1/8 ø5.7 45 20.5 32 105 14 20 17 22.5 4000 94.8 150.5 3.21 3.14 3.14 4.23 9.77
SBI55 SL FILE 80 100 172.4 12 75 75 M12 18 131 21 68 22 13 22 8 PT1/8 ø8.7 53 23.5 38 120 16 23 20 30 4000 127.3 181.8 4.81 2.97 2.97 5.04 13.72
SBI55 SLL FILE 80 100 211.8 12 75 95 M12 18 170.4 21 68 22 13 22 8 PT1/8 ø8.7 53 23.5 38 120 16 23 20 30 4000 147.9 224.5 5.95 4.78 4.78 5.82 13.72
SBI65 SL FILE 90 126 219.8 19 76 70 M16 16 170.4 26 71 14 13 14 10 PT1/8 ø8.7 63 31.5 53 150 18 26 22 35 4000 188.3 261.7 8.24 5.57 5.57 9.1 23.17
SBI65 SLL FILE 90 126 272.2 19 76 120 M16 16 222.8 26 71 14 13 14 10 PT1/8 ø8.8 63 31.5 53 150 18 26 22 35 4000 232.5 354.1 11.15 9.86 9.86 11.98 23.17
